IE's inlet design has been engineered as the ultimate turbo inlet solution. Only the best materials and design features were used for a high-end fit, function, and ultimate reliability.

• 23% higher flow over stock turbo inlet
• 37.4% higher flow than stock with IE carbon intake (stock turbo)
• 61.49% higher flow than stock with IE intake (hybrid turbo)
• 4\" effective inner diameter cross-section
• 85mm inlet side to 66mm turbo side (before adapter plates)
• Up to 19HP & 21ft-lbs over stock when combined with IE intake
• Hassle-free slip-fit retainer post design for easier install
• Engineered for hybrid turbo flow-support
• Direct bolt-on fit to stock and popular hybrid turbos
• Cast aircraft-grade aluminum
• In-house CNC machined for exact tolerances
• Maximized shape and size for flow
• Adaptable for stock or larger turbos
• O ring sealed turbo flanges for a leak-free seal
• Perfect addition for your IE Cold Air Intake

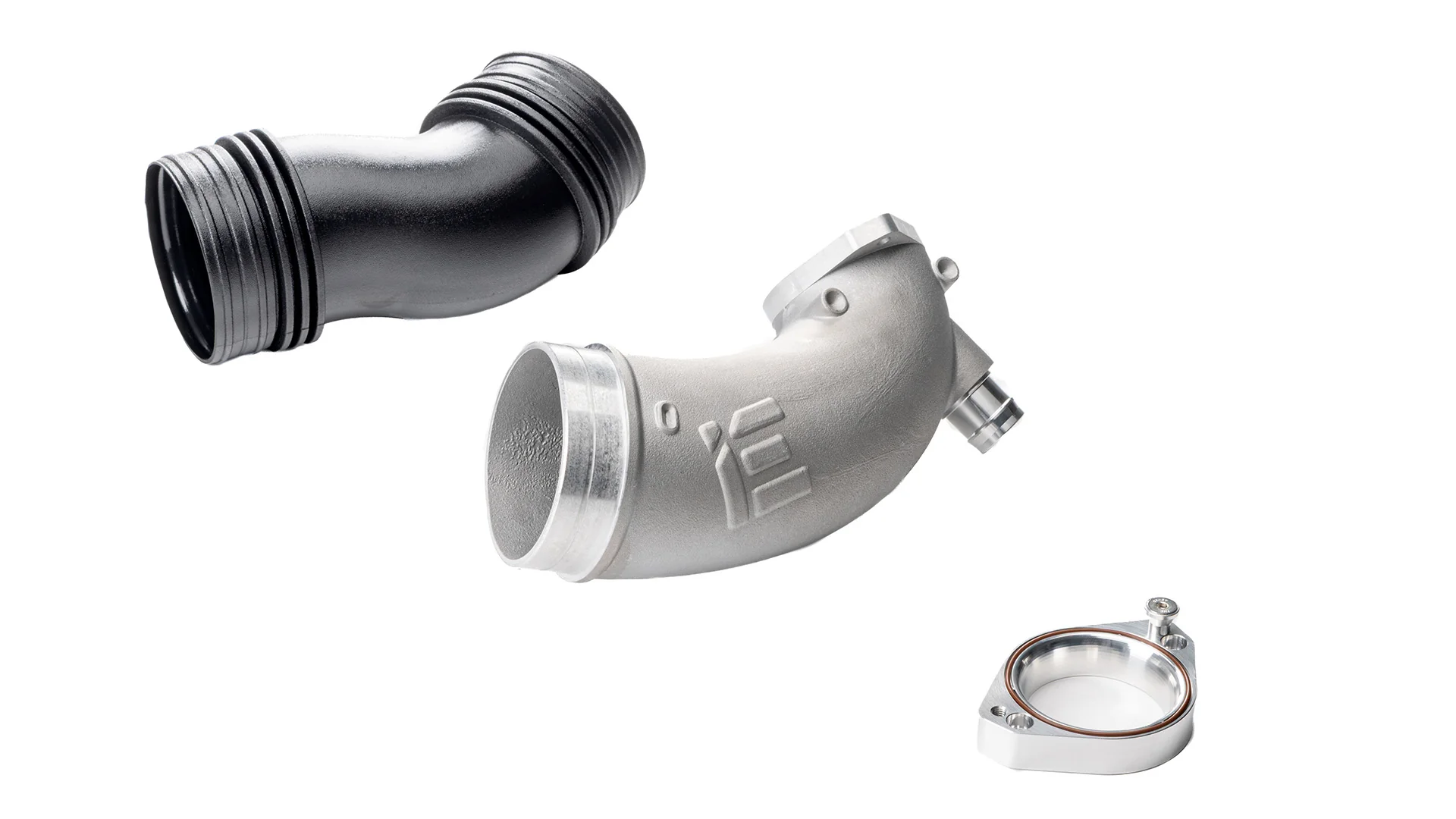

• Stock intake silicone adapter available

Gaining more flow is all in the size and shape of the turbo inlet pipe within the constraints of the factory engine bay. 3D scans were taken of the engine bay and stock inlet pipe to identify the space available to work in. This allows us to maximize the flow characteristics of the design without running into any clearance issues or rubbing expensive factory hoses or lines. This results in a very large effective 4\" inner diameter cross section taking up all available space for the most airflow physically possible.

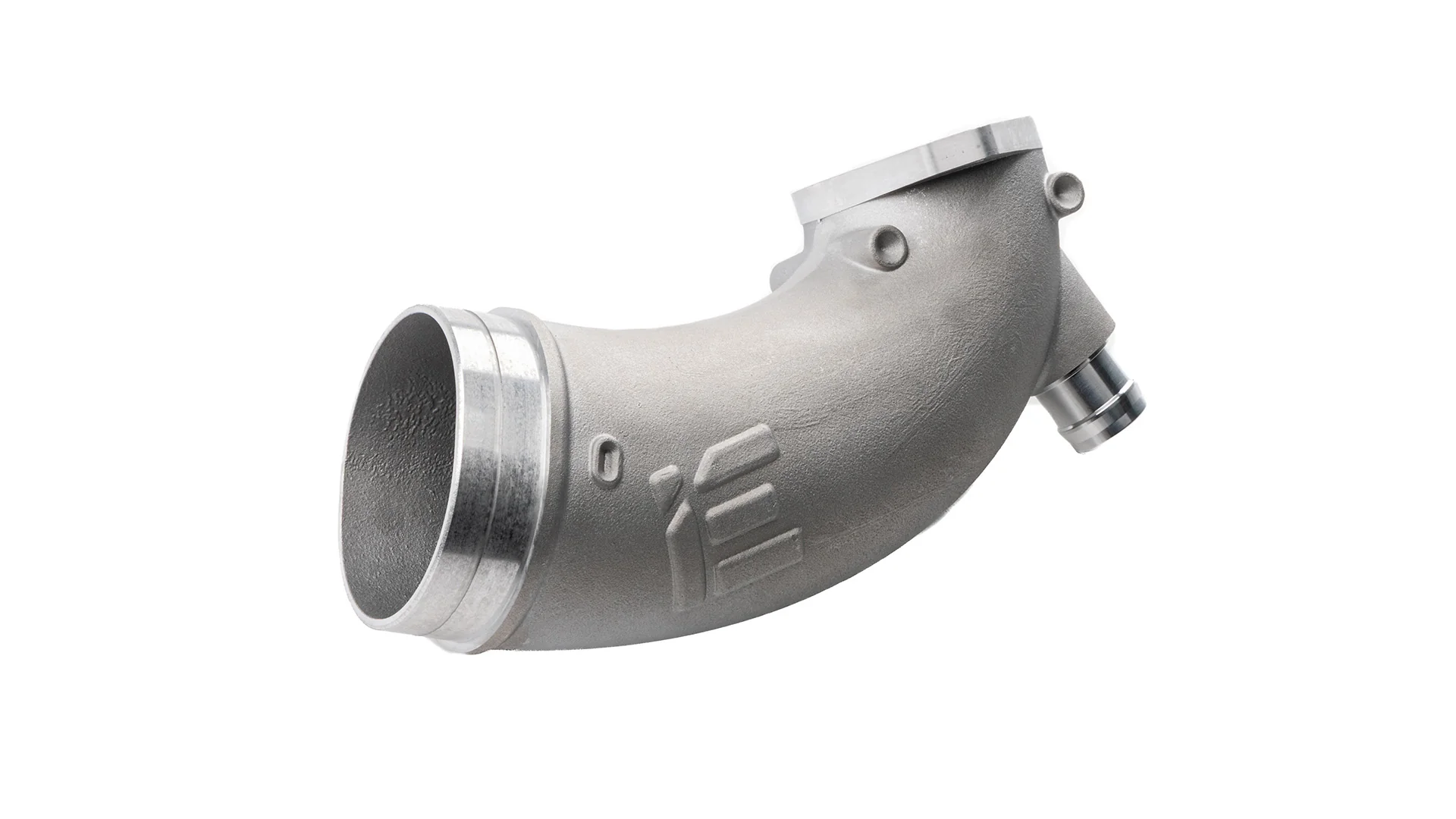

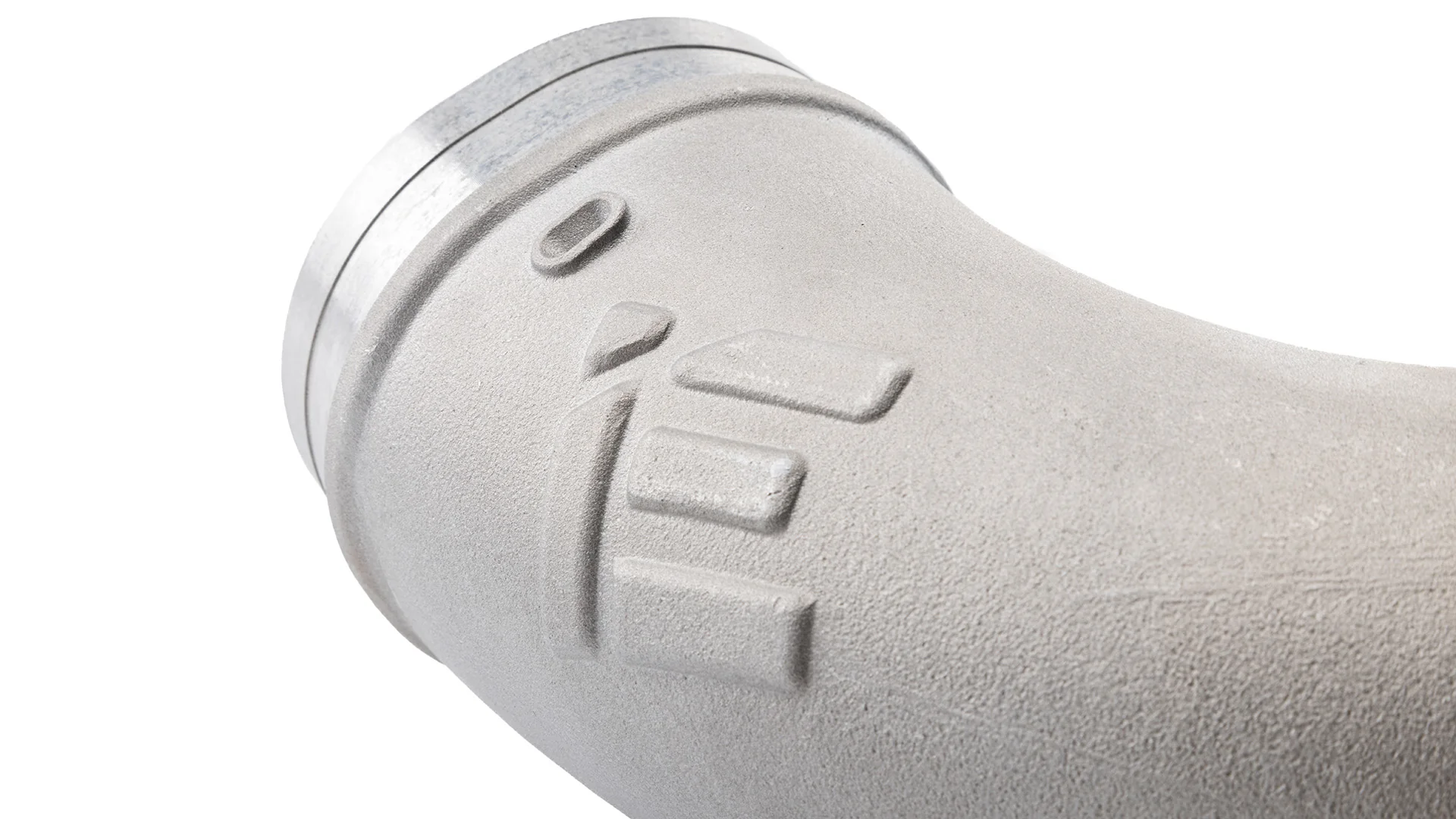

Designing a performance turbo inlet design is one thing, bringing it to life is another. To accomplish the unique shapes and bends required to achieve the maximum airflow, IE turbo inlets are manufactured from aircraft-grade aluminum castings. This process also results in an attractive finish and incredibly durable product.

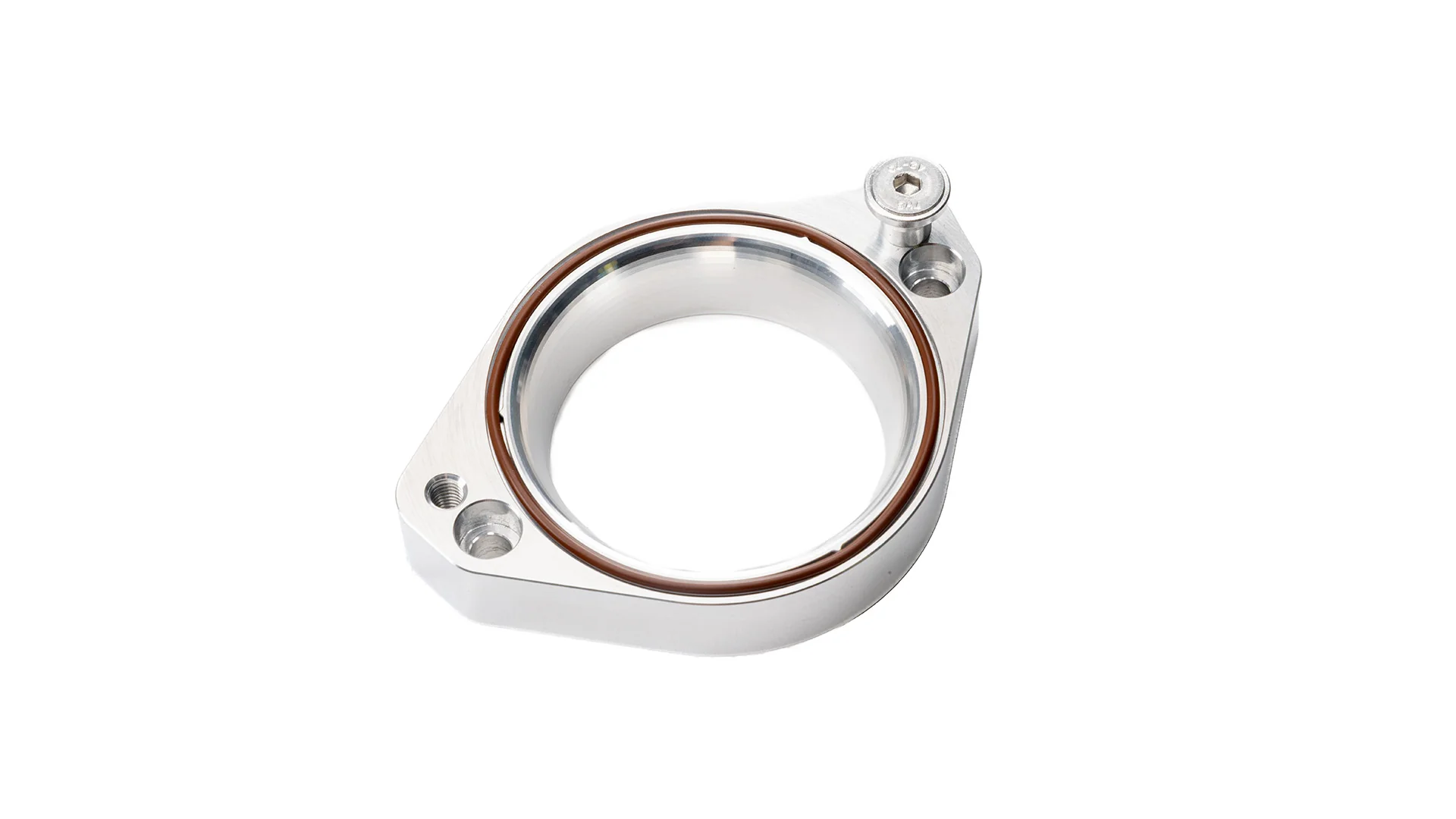

The IE Turbo Inlet Pipe has been designed with future options in mind. The 3.0T is a very popular platform for modifications and with many owners looking into upgrading the turbocharger for even more power. What's the point of designing a performance turbo inlet capable of hybrid flow rates if it doesn't fit? Our adaptable design utilizes CNC-machined and o ring sealed adapter rings to fit either the stock or a variety of aftermarket turbos without hassle. Turbo upgrade adapter rings are sold separately.

The factory lower bolt locaiton is a very tight fit with little space for tools and can be a frustrating bolt to install -especially with a large aftermaket inlet. For a hassle-free installation, our design features a billet aluminum retainer post that creates a leak-free slip fit for the bottom bolt making the process fast, smooth, and easy!

Since the IE inlet is designed to fit the largest space for high-flow as possible, the machine work required for the raw aluminum castings must be done with incredibly tight tolerances. Utilizing our own in-house CNC machines, each individual casting undergoes multiple operations and is verified with a strict quality control process. This ensures every inlet is shipped out with a beautiful machined finish and a precise installation.
